Cutting Plotter
CE7000 series
The cutting plotter CE7000 series has great effciency as high as high-end model with high cost-effectiveness
Size Lineup
Two sizes to match all requirements.
Enhanced performance
Max. cutting force 4.41N (450gf) and
Max. cutting speed 600mm/s & 900mm/s
With maximum cutting force 4.41N (450gf) and maximum cutting speed 600mm/s (CE7000-40) & 900 mm/s (CE7000-60), it enable to cut various media with high productivity.
Data output via USB flash memory without PC
When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.
Data output via USB flash memory without PC
Carrier Sheet Table
It is an optional item that can be attached to the front and back of the cutting plotter to support a carrier sheet.
* Available with CE7000-40 / -60.
* In case that using carrier sheet “CR09300-A3”, Please use together with carrier sheet table “OPH-A45”.
User-friendly control panel
3.7 inch LCD display and
easy-to-use control panel supports 10 languages.
Improved ARMS for high precision cutting (ARMS 8.0)
The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency boosting features improve productivity for Print & Cut applications such as stickers and decals.
Data Link Function
(Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE7000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.

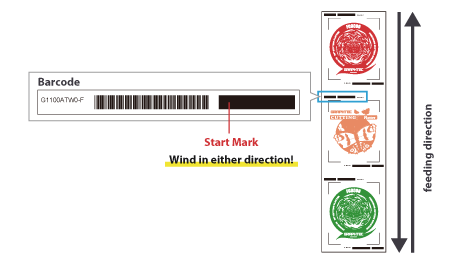

Continuous Cut
(Data Link function)
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.
Supports colored marks / specialty media
A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of specialty media and colored marks.
* This photo is an image of FC9000.
Supports Adobe Illustrator "Crop Marks"
Using the plug-in software Cutting Master 5, Adobe Illustrator crop marks will be available.
Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
Download File :
(*1)Operated with Graphtec specified cutting condition and media. For long-length cutting, the basket is used.
(*2)HP-GLTM is a registered trademark of Hewlett-Packard Company.
(*3)When equipped with the stand.
(*4)Graphtec does not support software/driver used with operating systems that have become obsolete and are no longer supported by the OS developer.
(*5)It requires an Internet connection in order for activation or registration when starting the software for the first time.
